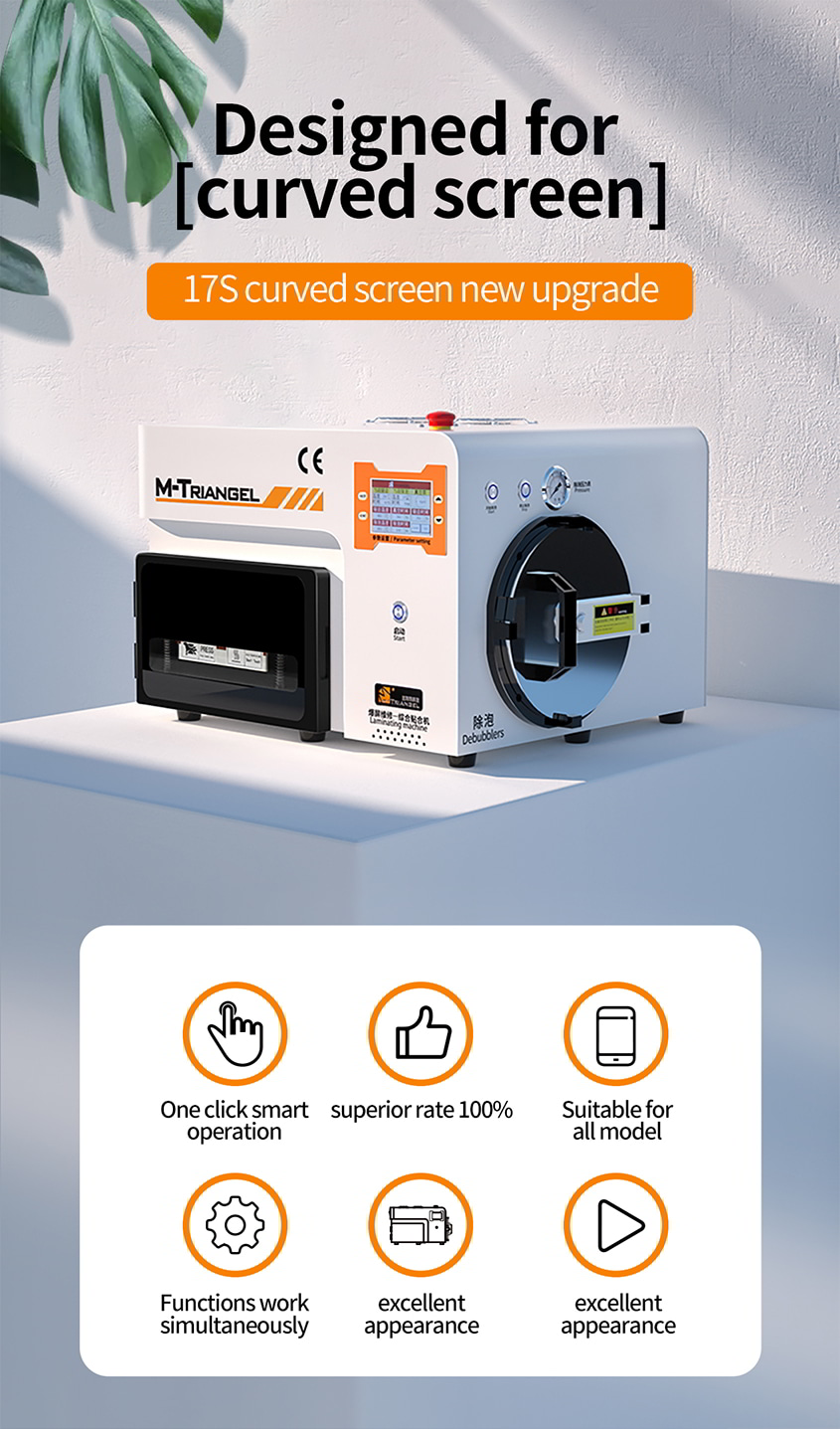

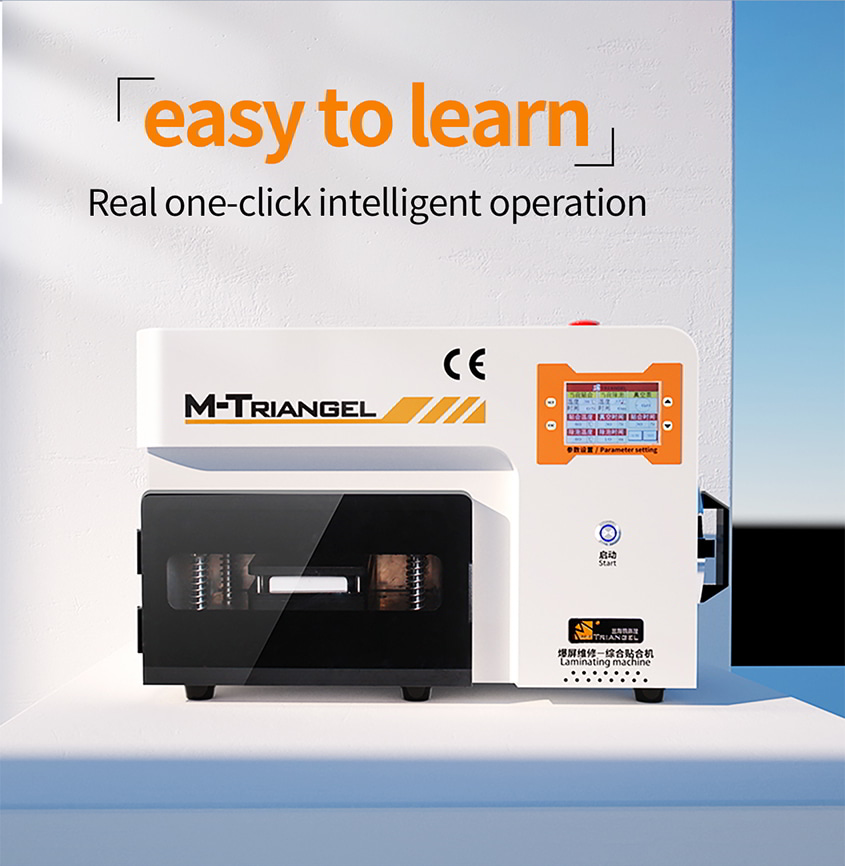

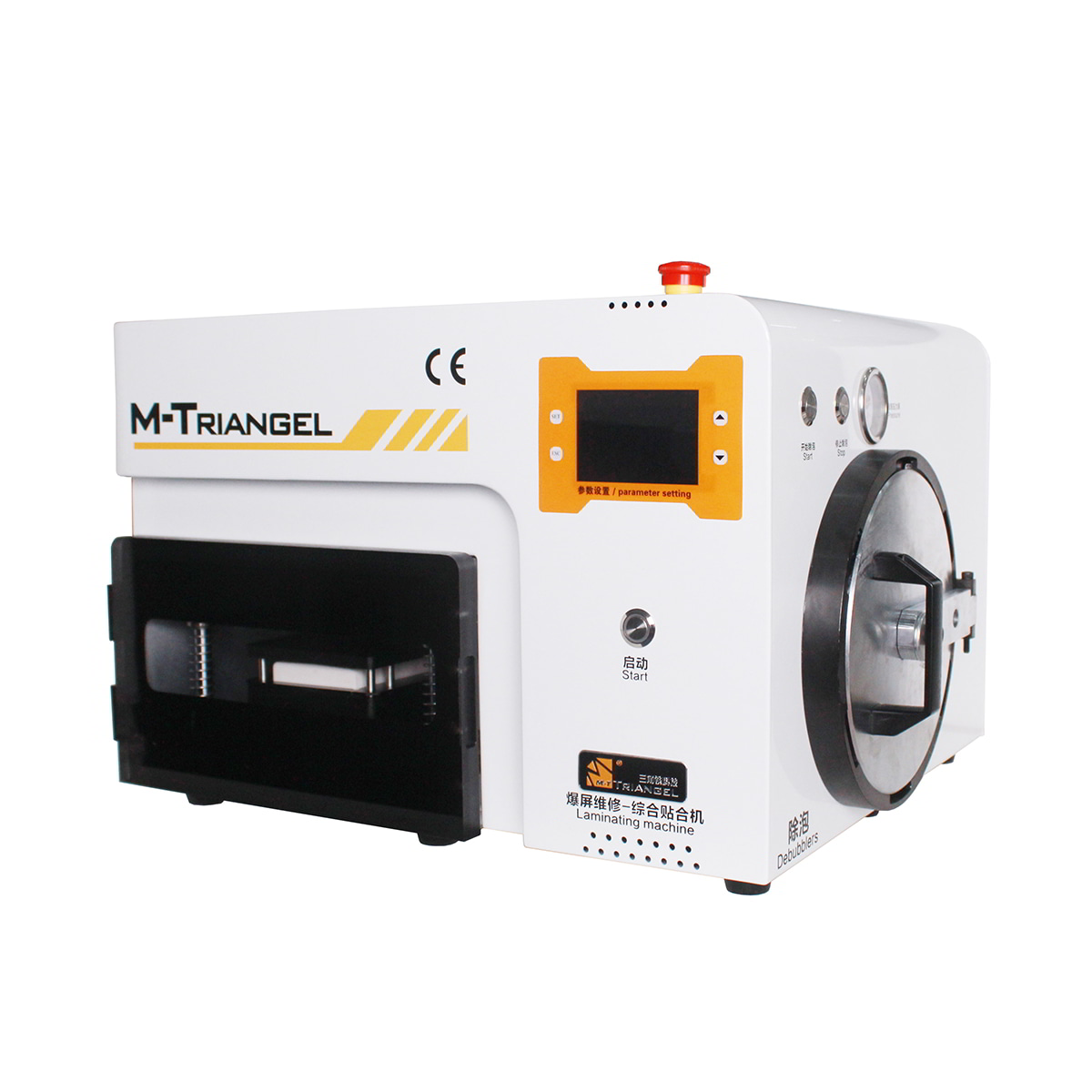

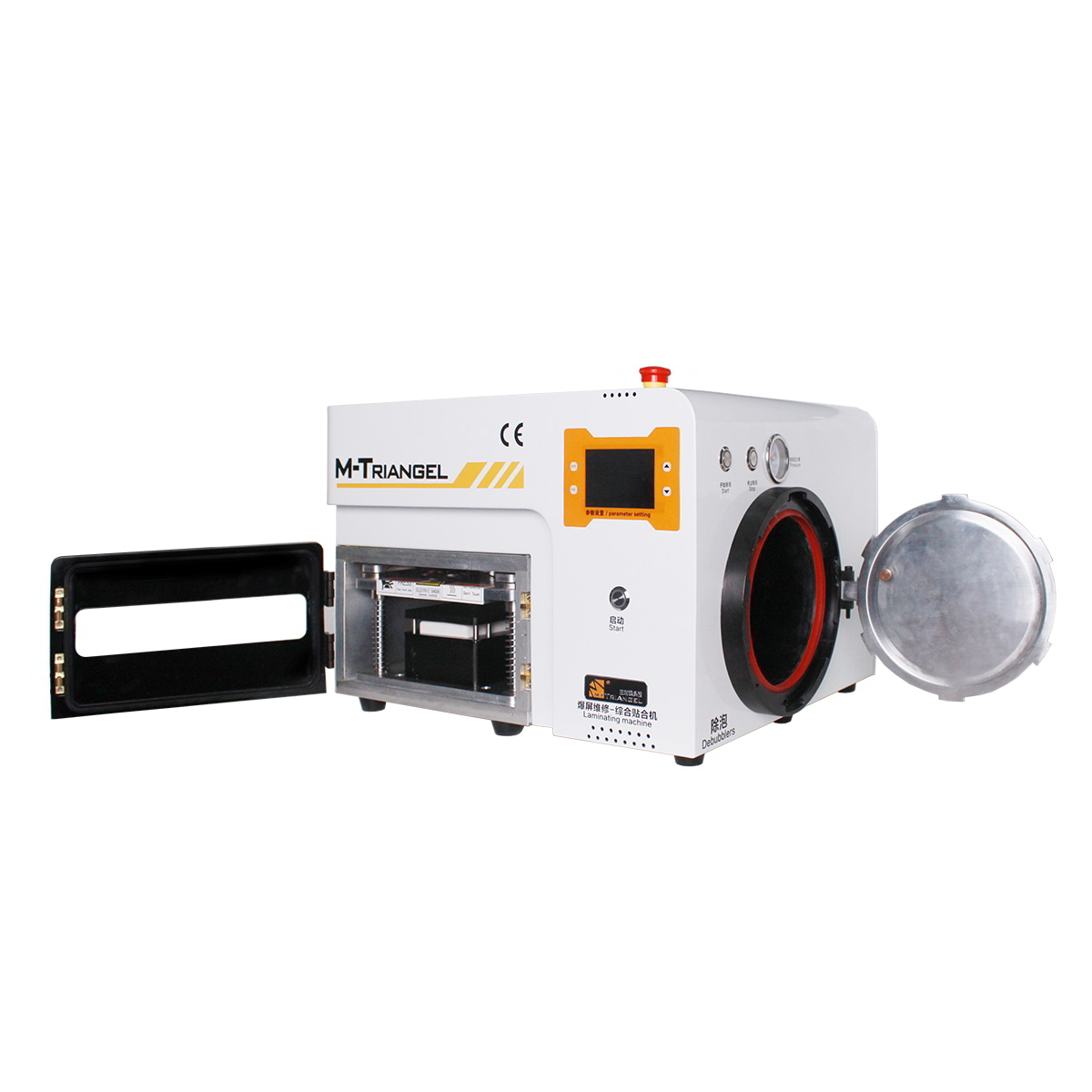

MT-17S edge screen all-in-one laminating machine

MT-17s OCA vacuum lamination machine integrates lamination, defoaming, air compressor and vacuum pump. It is also equipped with a pressure switch to easily set the pressure. It is suitable for repairing flat and curved screens. Support almost all mobile phone brands such as iPhone, Samsung, Xiaomi, HTC, Motorola, VIVO, OPPO and other broken screen refurbishment.

WhatsApp

广告

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Integer adipiscing erat eget risus sollicitudin pellentesque et non erat. Maecenas nibh dolor, malesuada et bibendum a, sagittis accumsan ipsum. Pellentesque ultrices ultrices sapien, nec tincidunt nunc posuere ut. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Nam scelerisque tristique dolor vitae tincidunt. Aenean quis massa uada mi elementum elementum. Nec sapien convallis vulputate rhoncus vel dui.
product details
Lamination type  curved surface, flat pressing
Production efficiency  60s /4pcs (independent joint mode) an hour to 24PCS (defoaming assist mode)
Heating mode  constant temperature heating
Lamination time  suggest 60s
Lamination temperature  suggest 35-45℃
Defoaming time  suggest 10 minutes
Defoaming temperature  suggest 40℃
Lamination size  up to 9 inches LCD (20*16cm)

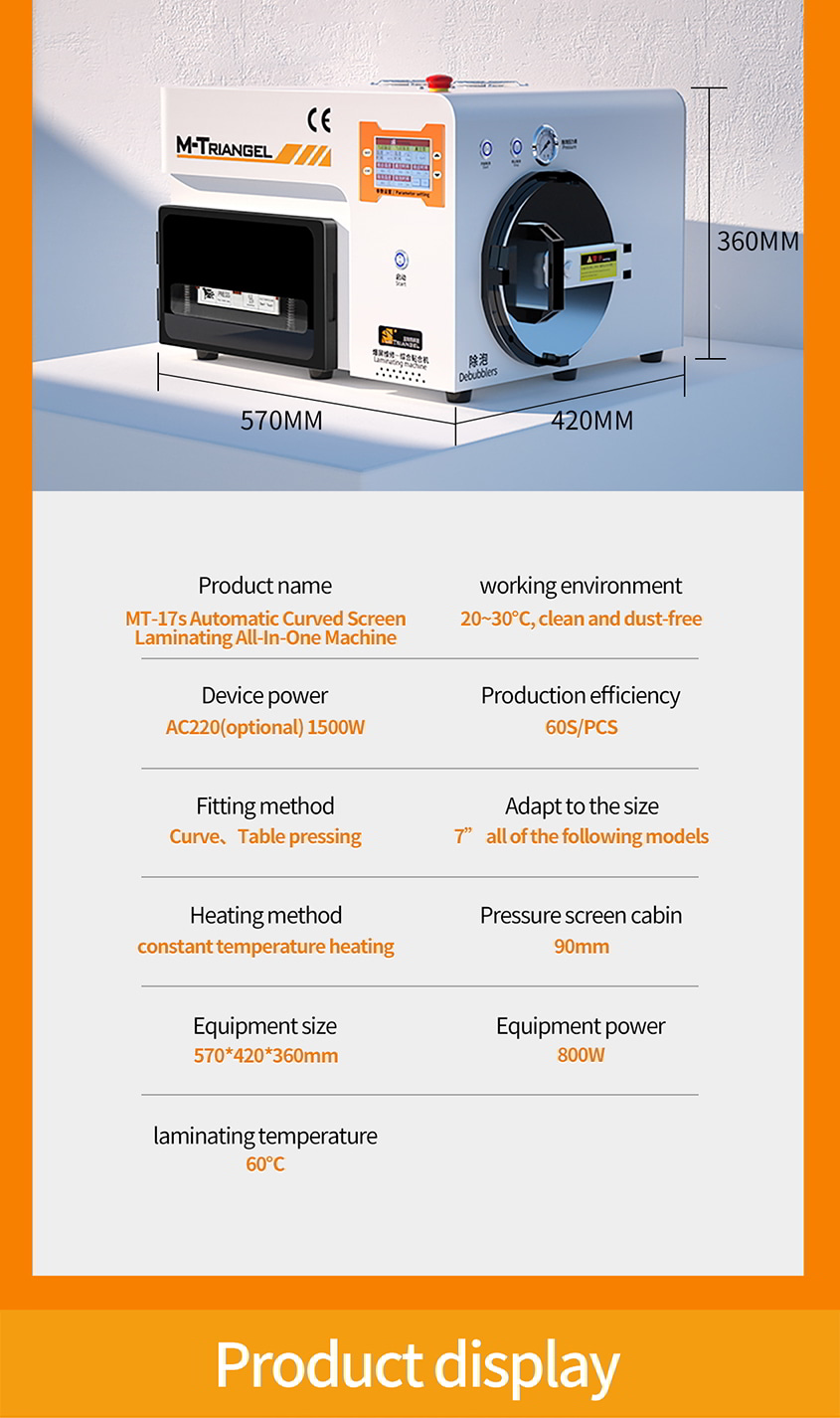

Equipment size  570*420*360 mm

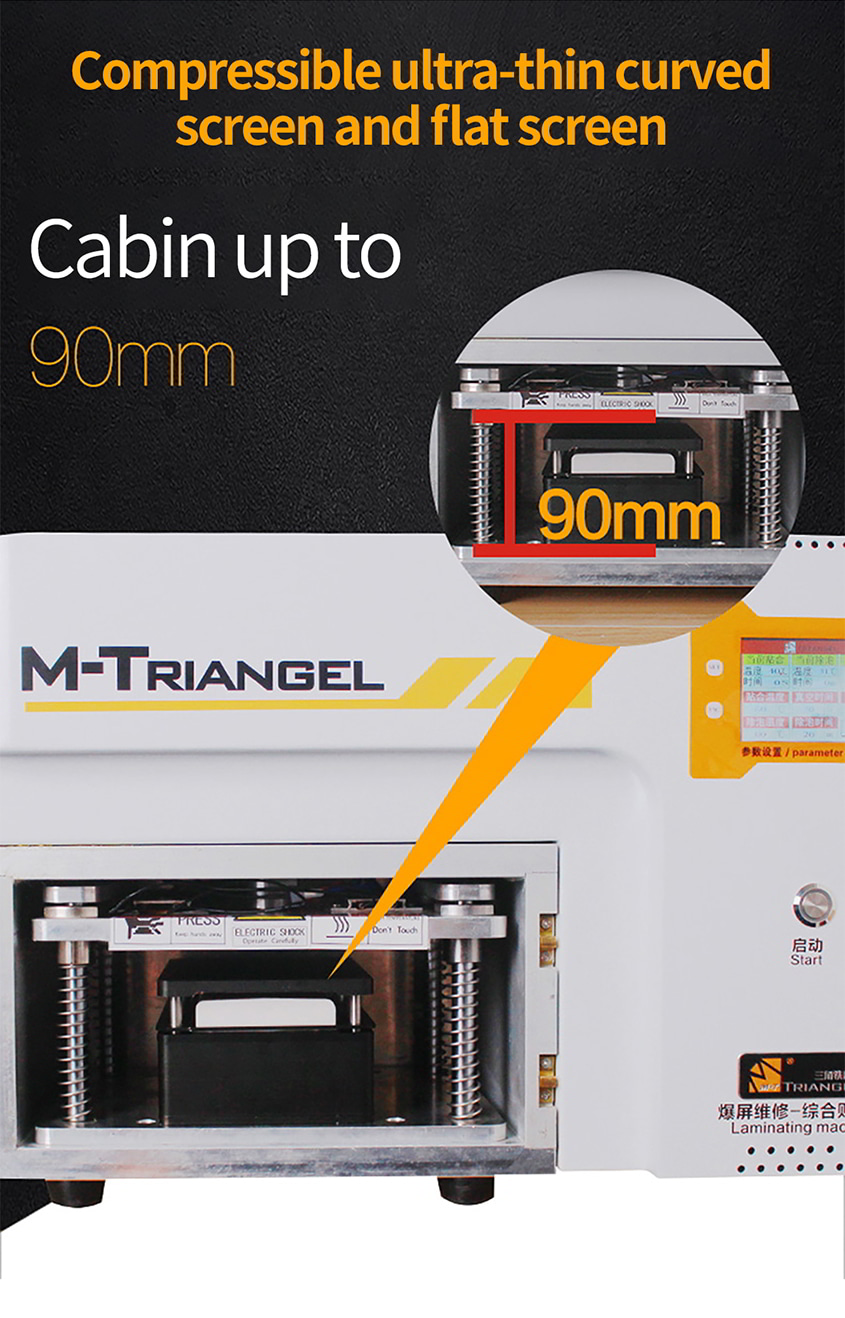

Cabin size  Deep 170 mm, Diameter 160 mm
Power supply  AC220V/110V 1500W
Equipment power  800W
Net weight  56.5KG
Shipping weight  65KG
